Dashboard

The dashboard is the main landing page for the Intelligence Hub. It provides a high level overview of the following:

• Current connection and pipeline statuses
• Intelligence Hub version, last restart time, and connected agent versions
• Key configuration settings
• Recent logs
• Time series charts of error logging
• Aggregate counts of conditions, models, instances, namespaces, connections, and pipelines

Dashboard Widgets

Hub

The Hub widget shows the current Intelligence Hub version, the last restart time, and versions of any connected agents (e.g., PI Agents). The Hub widget can be useful to quickly spot and update outdated agent versions.

Connections

The Connections widget provides a synopsis of all active connections in the Intelligence Hub, along with any active errors that need to be resolved.

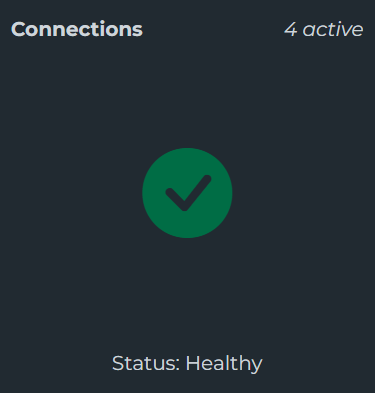

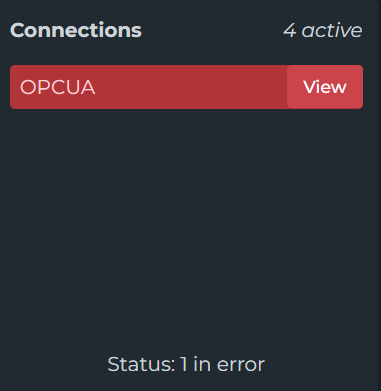

If a connection is in error, click anywhere on its alert to go directly to the connection details. When no active connections are in error, the widget displays a healthy indicator.

Pipelines

The Pipelines widget provides a synopsis of all active pipelines in the Intelligence Hub, along with any active errors that need to be resolved or dismissed.

If a pipeline is in error, click anywhere on its alert to go directly to the pipeline details. When all pipelines run without errors, the widget displays a healthy indicator.

Overview

The Overview widget displays aggregate counts of all configured connections, conditions, models, instances, namespaces, and pipelines (active and inactive).

Click any row to navigate to the respective page to add, remove, or edit that item type.

Logs

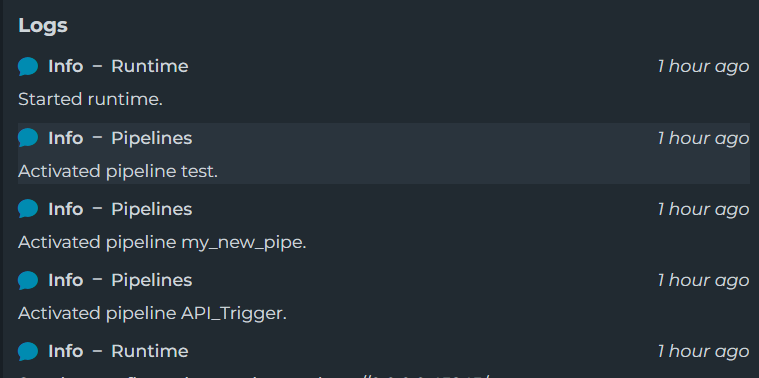

The Logs widget lists the most recent Intelligence Hub log entries including level (error, warning, info), relative timestamp, source, and message.

Click a log row to navigate to the Log Events page, filtered to that log timestamp and preceding log entries.

Error Logs Chart

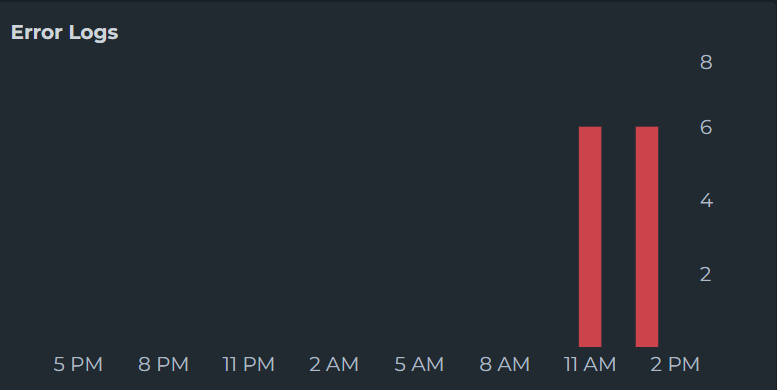

The Error Logs widget charts error counts for the past 24 hours. Hover over a bar to see the total for that hour. Click a bar to navigate to the Log Events page, filtered to the selected hour.

Settings

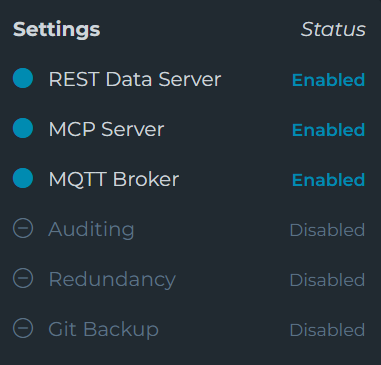

The Settings widget shows whether each listed Hub setting is enabled or disabled.

Click a row to navigate directly to that setting on the Settings page.
