HTTP Server
The HTTP Server hosts the MCP, I3X, and REST Data servers. When any of these servers are enabled, the HTTP Server automatically starts and binds to the configured hostname and port.

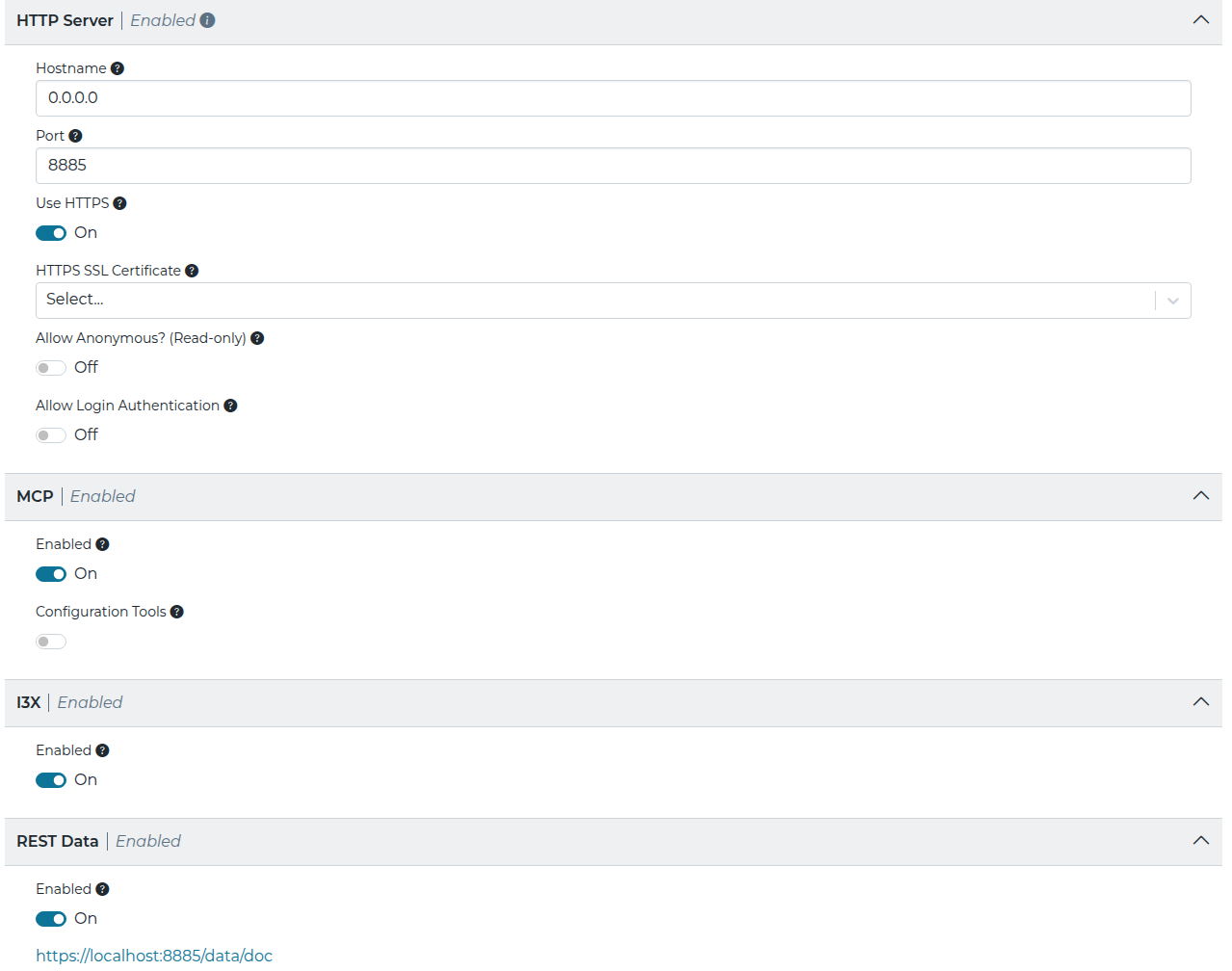

HTTP Server
| Setting | JSON Property | Description |
|---|---|---|
| Hostname | settings.restDataServer.hostname |
The hostname/network interface to bind to. In most cases this should be 0.0.0.0, 127.0.0.1 (localhost), or a NIC address on the machine. |
| Port | settings.restDataServer.port |
The port to bind to. Defaults to 8885. |
| Use HTTPS | settings.restDataServer.useHttps |
Enable this to host using HTTPS. |
| HTTPS SSL Certificate | settings.restDataServer.schemeCertificate |
The certificate/key used to host HTTPS. This should be added to the certificate store. By default this uses the internal self-signed certificate. |
| Allow Anonymous (Read-only) | settings.restDataServer.allowAnonymous |
Allows HTTP clients to invoke GET operations on HTTP Server without providing an authorization header. |
| Allow Login Authentication | settings.restDataServer.allowLoginAuthentication |
When enabled, users can login on the HTTP Server using their user credentials. |
MCP Server
| Setting | JSON Property | Description |
|---|---|---|
| Enabled | settings.mcpServer.enabled |
Enables the MCP Server. |
| Configuration Tools | settings.mcpServer.configurationTools |
Enable MCP Tools for project configuration. Disabled by default. See MCP Services for details. |
To use the MCP Server, a valid Bearer Token is required for authentication. The MCP Server exposes all Pipelines configured with an API Trigger. Currently, only Server-Sent Events (SSE) are supported. For more information about MCP, see the official MCP documentation.
I3X Server
| Setting | JSON Property | Description |
|---|---|---|
| Enabled | settings.i3xServer.enabled |
Enables the I3X Server. |
REST Data Server
| Setting | JSON Property | Description |
|---|---|---|
| Enabled | settings.restDataServer.enabled |
Enables the REST Data Server. |
After enabling the REST Data Server, access the configured URL to view and test the OpenAPI specification.
Server Endpoints
Starting the MCP, I3X, or REST Data server will also start the HTTP Server. Each server is accessible at the following endpoints:
| Server | Endpoint |
|---|---|
| MCP | <httpServer.hostname>:<httpServer.port>/mcp |
| I3X | <httpServer.hostname>:<httpServer.port>/i3x |
| REST Data | <httpServer.hostname>:<httpServer.port>/data/ |
If all three servers are stopped, the HTTP Server will shut down automatically.
